Executive summary
“Figuring asphalt,” in construction parlance, means calculating the volume, weight, and cost of asphalt for a project. But the intent behind that calculation shifts dramatically depending on who is doing the figuring.
A homeowner wants a sanity check before hiring a contractor. A paving crew needs an auditable quantity to protect bid margins. A civil engineer designs for traffic, soil, climate, and reliability. A facility manager models maintenance and rehabilitation over time. This guide explains how the same quantity calculation is used differently by each role.
1) The fundamentals: how to figure asphalt quantities

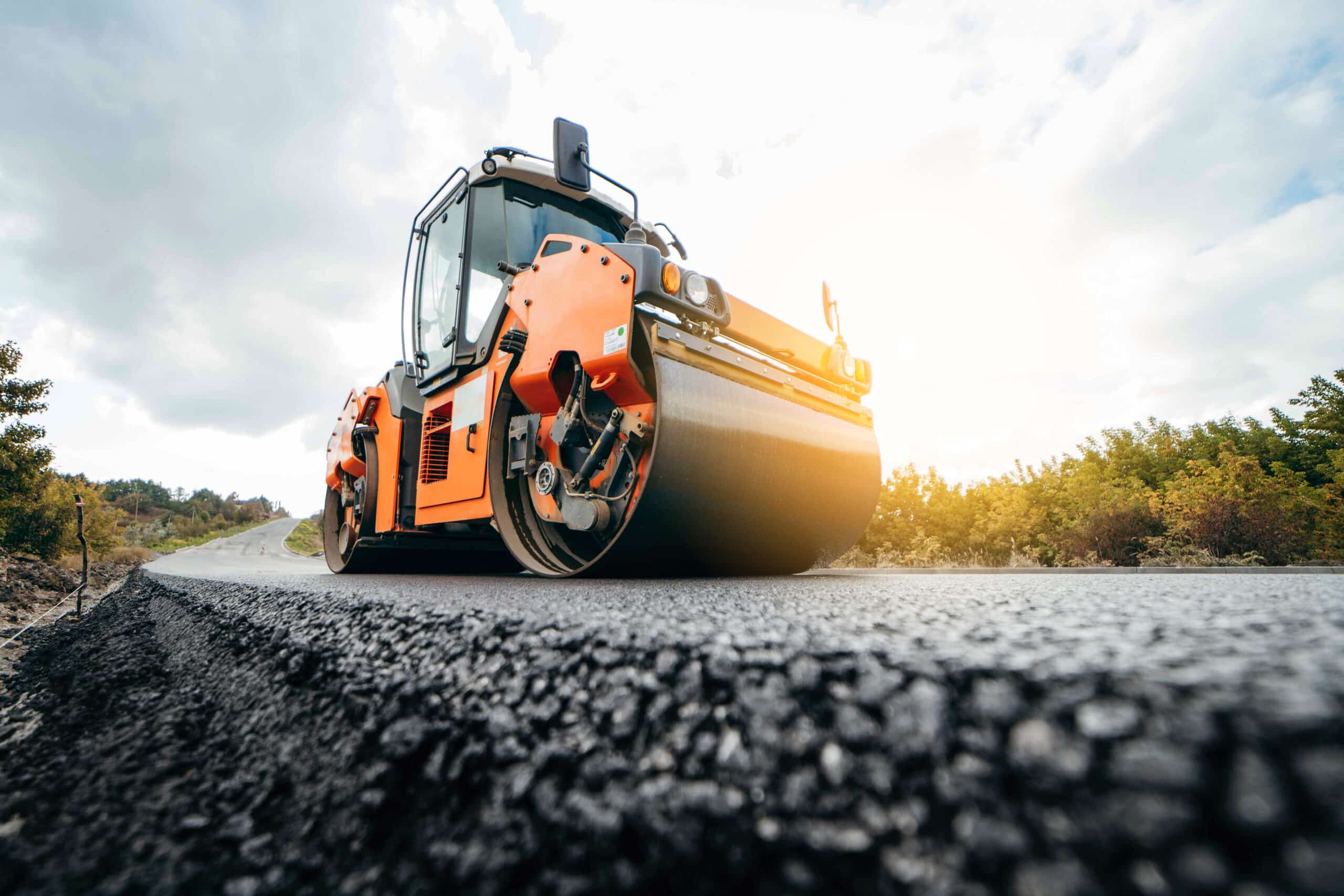

Heavy machinery such as this vibratory roller is essential for achieving the required compaction density calculated during the figuring process.
Asphalt is applied by volume (area × depth) but sold by weight (US tons). Figuring asphalt correctly requires bridging those two units with a density factor.
The four core variables
| Variable | Notes |
|---|---|
| Length | Total linear distance of the paving area |
| Width | Total distance across the paving area |
| Depth (compacted) | Thickness after roller compaction—not loose depth |
| Density | Compacted Hot Mix Asphalt (HMA) ≈ 145–150 lbs/cubic ft |
Step-by-step calculation
- Area →
Length (ft) × Width (ft) = Area (sq ft) - Volume →
Area (sq ft) × [Depth (in) ÷ 12] = Volume (cu ft) - Weight →
Volume (cu ft) × 145 lbs = Total lbs - Tonnage →
Total lbs ÷ 2,000 = Tons
Quick field shortcut
For rapid estimates on the job site, two rules of thumb are widely used:
- Per-square-yard rule: 1 inch of compacted asphalt ≈ 110–115 lbs/sq yd
- Multiplier formula:
Square footage × Depth (in) × 0.0061 = Estimated tons
Free online asphalt calculators automate this math for standard rectangular areas, but understanding the underlying formula is essential for irregular shapes and contractor verification.
2) Figuring asphalt as a homeowner

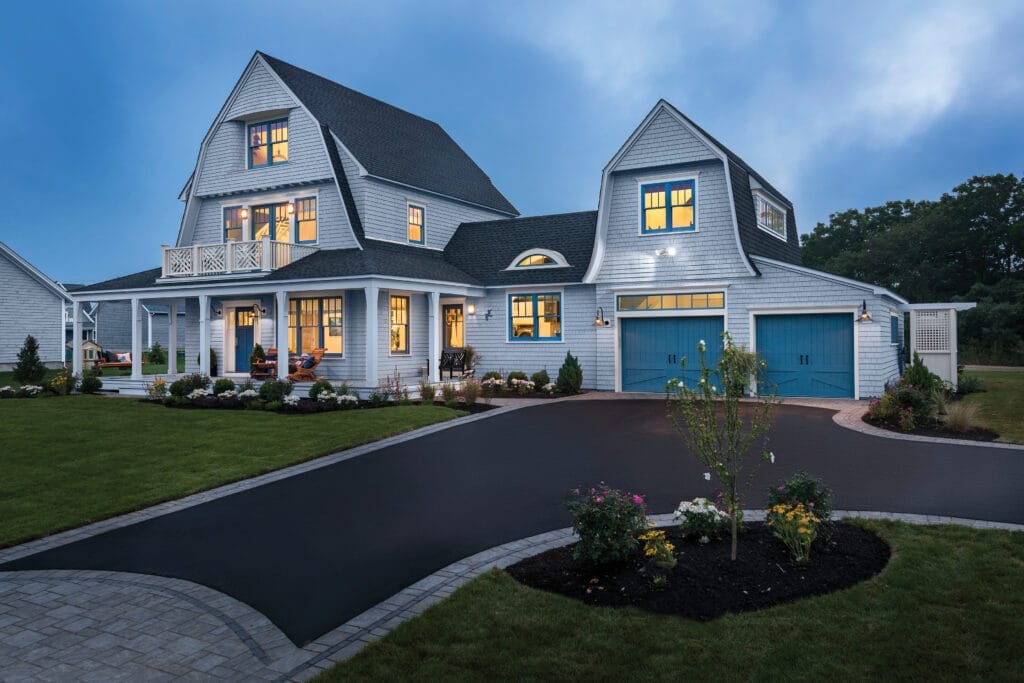

Homeowners calculate costs based on total square footage rather than raw material tonnage.
For most homeowners, figuring asphalt means answering one question: “Is this contractor’s quote reasonable?” Residential projects hinge on square footage and all-in installed cost rather than raw tonnage.
Recommended thickness by use case
- Standard passenger vehicles: 2.5–3 inches compacted, over a prepared aggregate base
- RVs, delivery trucks, or heavy loads: 4 inches or more
Illustrative 2025 residential budget components
| Cost component | Range (per sq ft) | What it covers |
|---|---|---|
| Material only | $1.50–$3.00 | Raw Hot Mix Asphalt |
| Labor & equipment | $2.00–$6.00 | Grading, paving, compaction, machinery |
| Base preparation | $1.00–$3.00 | Excavation and crushed-stone sub-base |
| Total installed | $4.00–$8.00 | Standard residential driveway |

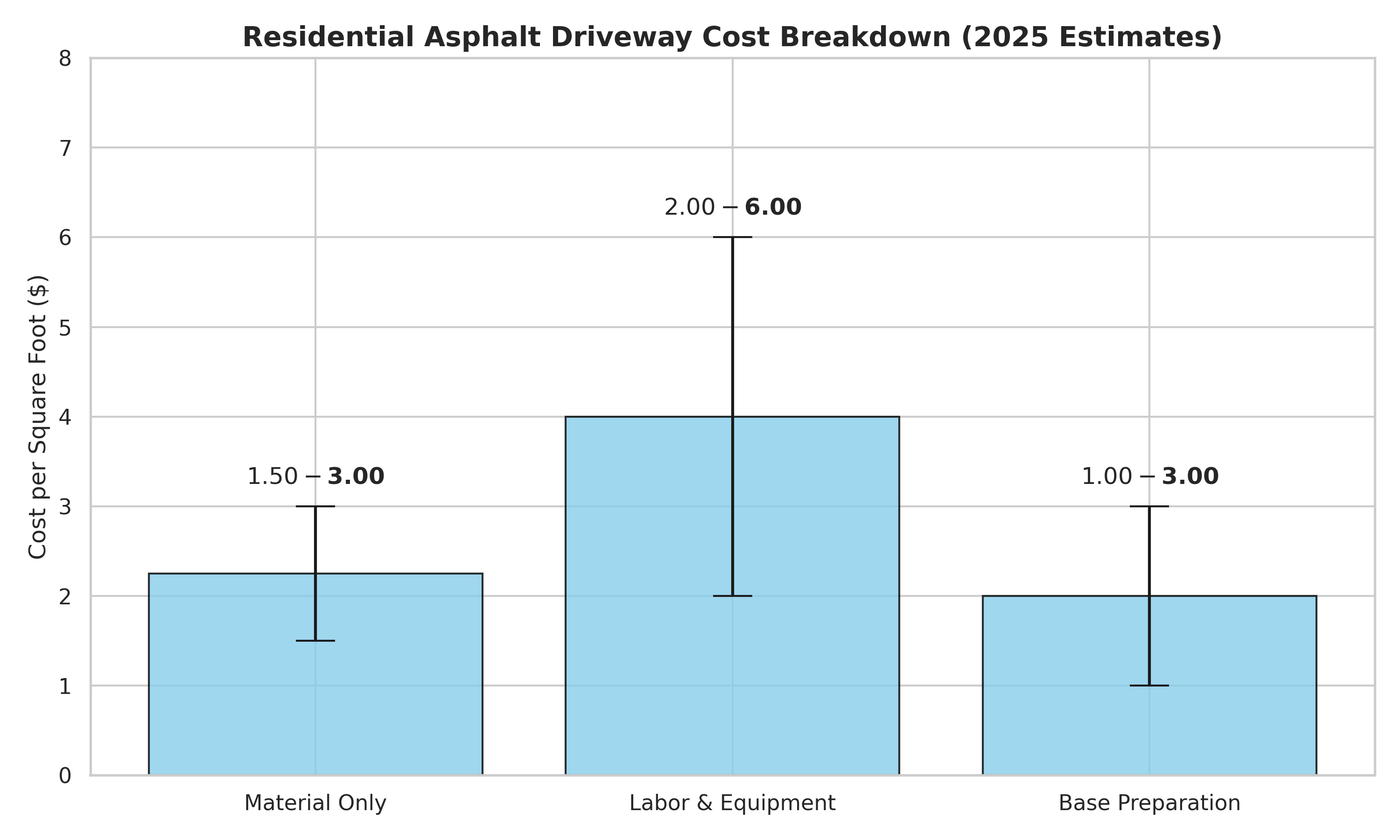

Breakdown of estimated costs per square foot for a residential driveway installation in 2025.
These historical ranges are examples, not current quotes. Extensive excavation, root removal, drainage, minimum-load charges, and access constraints can change the installed price substantially.
What to check in a contractor’s bid
- Does the quote specify the compacted depth (not loose depth)?
- Is the asphalt mix grade listed?
- Is base preparation itemized separately?
- Does the price reflect current regional HMA pricing—not last year’s?
3) Figuring asphalt as a paving contractor

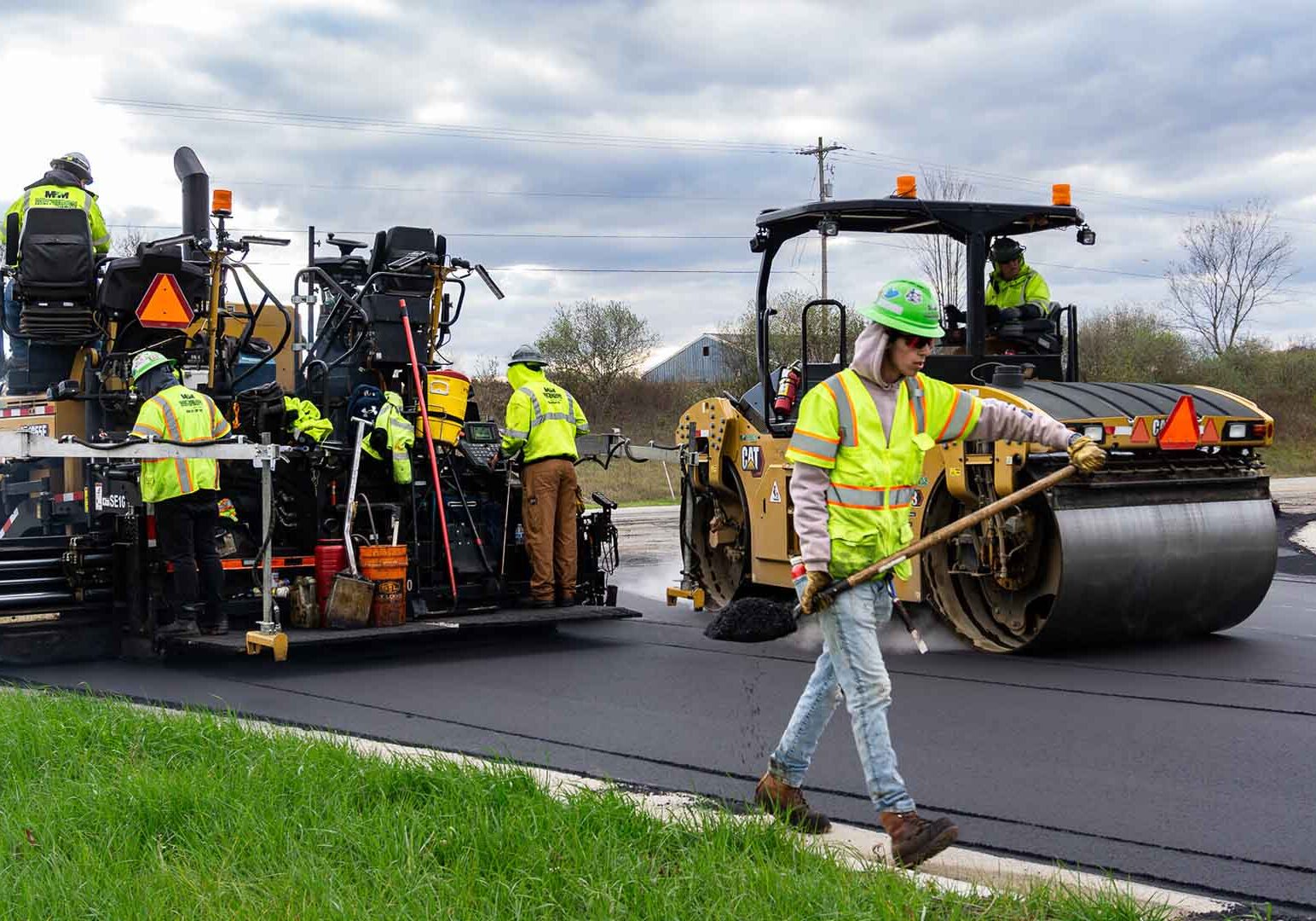

Contractors must figure precise material needs to keep crews moving efficiently and bids competitive.
For paving contractors, figuring asphalt is the mathematical backbone of competitive bidding. An underestimate leaves the crew short on site; an overestimate loses the job. Neither is acceptable.
The bidding workflow
- Site visit — evaluate existing pavement condition, subgrade stability, and drainage
- Digital takeoff — use estimating software (HCSS HeavyBid, STACK, or similar) to calculate precise square footage from blueprints or satellite imagery
- Tonnage calculation — apply the standard formula, then add contingency
- Price build-up — material + plant delivery + labor + equipment + overhead + margin
Contingency factors when figuring asphalt tonnage
Contractors may add a documented project allowance to account for:
- Yield loss — base irregularities requiring extra material to achieve a level surface
- Hopper waste — material remaining in the paver at the end of a run
- Temperature rejection — loads arriving below spec temperature are refused
- Measurement and leveling uncertainty — irregular edges and variable-depth areas differ from plan geometry
2025 HMA plant pricing
Plant pricing varies by mixture, region, quantity, and date. Liquid asphalt indexes may support contract adjustments but are not the same as a delivered HMA quote. Obtain a current quote for the specified mixture and document freight and minimum-load terms.
4) Figuring asphalt as a civil or pavement engineer

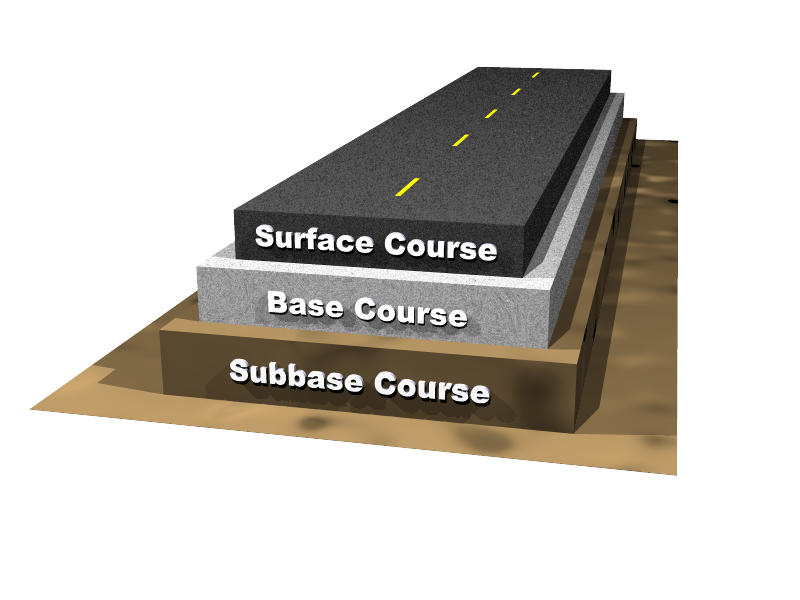

Engineers design asphalt pavements as multi-layer structural systems to distribute traffic load stresses over the design life.
Engineers approach figuring asphalt as a structural mechanics problem, not just a volume calculation. The goal is a pavement that carries projected traffic loads over a 20–40 year design life without premature failure.
Structural Number (SN) design
Rather than selecting a depth empirically, engineers use the AASHTO Guide for Design of Pavement Structures to determine a required Structural Number (SN). SN accounts for:
- Projected Equivalent Single Axle Loads (ESALs)
- Subgrade resilient modulus (soil strength)
- Reliability level (highway vs. local road)
- Layer coefficients for each material type
The SN drives the combined thickness of surface asphalt, binder course, and aggregate base—an engineered system, not a rule of thumb.
Mix design specifications
Engineers figure not just quantity but also composition of the asphalt itself:
| Mix type | Primary use |
|---|---|
| Hot Mix Asphalt (HMA) | Standard for high-traffic highways |
| Warm Mix Asphalt (WMA) | Lower temperatures, longer haul windows, reduced emissions |
| Polymer-Modified Asphalt (PMA) | High rut resistance in heat; crack resistance in cold |
| Open-Graded Friction Course (OGFC) | Porous surface to reduce hydroplaning on highways |
5) Figuring asphalt as a property or facility manager
Property managers treat asphalt as a capital asset. Figuring asphalt means modeling decades of maintenance, rehabilitation, and eventual replacement—not just the initial pour.
Life-Cycle Cost Analysis (LCCA)

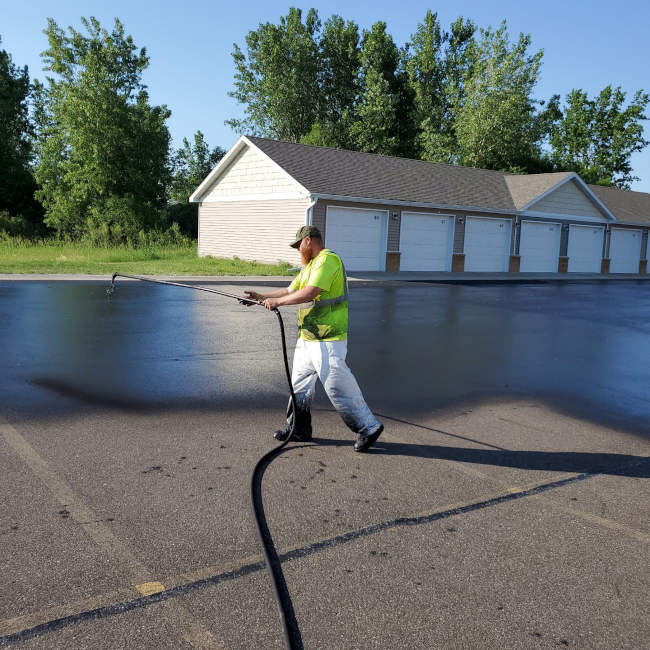

Routine maintenance such as sealcoating is factored into a facility manager’s lifecycle cost analysis to extend pavement life.
LCCA evaluates all costs over the full pavement lifespan, discounted to present value:
- Initial construction
- Routine maintenance (crack sealing, sealcoating)
- Periodic rehabilitation (mill and overlay)
- Terminal reconstruction
Timely preservation can defer more disruptive rehabilitation when the selected treatment matches the pavement condition. Annual budgets should be tied to inspection data and an updated treatment plan rather than a universal service-life promise.
Maintenance budget categories
| Activity | Pricing unit to request | Timing trigger | Purpose |
|---|---|---|---|
| Crack treatment | Linear foot by crack type and preparation | Inspection identifies appropriate isolated cracks | Limits water entry where sealing/filling is suitable |
| Surface treatment | Square foot with preparation and product stated | Condition, local practice, and product requirements | Addresses defined surface-maintenance objectives |
| Mill and overlay | Square foot or ton with milling depth and mix stated | Surface rehabilitation is justified and support is adequate | Restores profile and wearing layer |
| Full reconstruction | Itemized demolition, base, drainage, and pavement | Support or drainage requires rebuilding | Replaces failed pavement structure |
LCCA demonstrates the financial benefits of proactive maintenance versus reactive full replacement over a 30-year pavement lifespan.
Reclaimed Asphalt Pavement (RAP) and sustainability
Modern facility managers increasingly figure environmental impact alongside financial cost. Reclaimed Asphalt Pavement (RAP)—milling, crushing, and recycling old asphalt back into new mixes—delivers measurable benefits:
- Diverts millions of tons of material from landfills annually
- Reduces virgin aggregate and bitumen demand
- Reduces demand for virgin aggregate and binder in proportion to the accepted mix design
- Can reduce material cost when processing, transport, testing, and performance requirements are considered
Conclusion
Figuring asphalt is a multi-layered discipline. The same core formula—area × depth × density ÷ 2,000 = tons—underpins every calculation, but what you do with that number depends entirely on your role:
- Homeowners use it to budget and verify contractor quotes
- Paving contractors use it to build auditable quantity takeoffs and document contingency
- Civil engineers use quantity output as one input alongside project-specific pavement design
- Property managers use it as the foundation for lifecycle cost modeling and capital planning
Transparent asphalt quantity planning—whether for a residential driveway or commercial parking lot—helps teams identify assumptions before ordering and compare scopes on the same basis.
References
- Federal Highway Administration. Life-Cycle Cost Analysis
- Federal Highway Administration. Asphalt Pavement Resources
- Federal Highway Administration. Reclaimed Asphalt Pavement in Asphalt Mixtures
- National Asphalt Pavement Association. Asphalt Pavement Facts
- Asphalt Calculators. 2025 Asphalt Cost Guide
The density shortcuts in this article are preliminary estimating assumptions. Confirm the mix design or supplier density before ordering, and account for irregular geometry, minimum loads, and compacted—not loose—thickness. Use the waste-factor guide to document an allowance and the parking lot calculator for multiple areas and lifts.
